Objectif: Utiliser les machines a vecteurs de support (SVM) pour la classification de direction des prix.
pip install scikit-learn# Initialisation QuantBook
from AlgorithmImports import *
qb = QuantBook()
# Periode d'analyse
qb.SetStartDate(2020, 1, 1)
qb.SetEndDate(2024, 12, 31)
print(f"Periode: {qb.StartDate} a {qb.EndDate}")Periode: 2020-01-01 00:00:00 a 2024-12-31 23:59:59.999999# Ajouter les ETFs
tickers = ['SPY', 'QQQ', 'IWM', 'TLT', 'GLD']
symbols = {}
for ticker in tickers:
symbols[ticker] = qb.AddEquity(ticker, Resolution.DAILY).Symbol
# Recuperer les donnees.
# NB: qb.History(lookback) retourne une fenetre ancoree a qb.Time, qui dans un QuantBook
# frais vaut StartDate -- donc le lookback 5y finit vers StartDate (2020), pas EndDate.
# La fenetre effective (imprimee ci-dessous) reflete ce que le notebook calcule reellement,
# pas la periode announcee en cell[1]. Ne PAS re-fenetrer sur 2020-2024 pour l'instant :
# les donnees equity locales s'arretent au 2021-03-31 (#8734) et Lean les prolongerait en
# constante (fillDataForward=True) -> artefact de ligne plate. La fenetre reculee est, par
# accident, la raison pour laquelle ce notebook a de vraies donnees. (C951-L, #8772.)
history = qb.History(list(symbols.values()), 365*5, Resolution.Daily)
closes = history['close'].unstack(level=0)
volumes = history['volume'].unstack(level=0)
highs = history['high'].unstack(level=0)
lows = history['low'].unstack(level=0)
# Fail-fast guard (C941-L/C942-L, #8734, ai-01 c.38) : presence != fraicheur.
# (1) Un ticker silencieusement droppe doit ERREUR (add_equity accepte les symboles
# absents ; dropna les retire sans avertir -> KeyError plus tard, attribue a tort a un bug).
_missing = [t for t in tickers if str(symbols[t]) not in [str(col) for col in closes.columns]]
if _missing or closes.shape[1] < len(tickers):
raise ValueError(f"Ticker(s) absent(s) de l'historique (attendu {len(tickers)}, obtenu "
f"{closes.shape[1]}). Regenerer les donnees via provision_lean_data.py (C941-L).")
# (2) Detecteur de forward-fill (C942-L) : un zip tronque prolonge par Lean
# fillDataForward=True (defaut) produit une queue PLATE (std==0 sur les dernieres
# barres), pas du vrai prix. Window-agnostic (ne false-fire pas sur l'ancrage StartDate).
_flat = [str(col) for col in closes.columns if closes[col].tail(60).std(ddof=0) == 0]
if _flat:
raise ValueError(f"Queue plate (fillDataForward constant) sur {_flat} -- zip tronque "
f"prolonge en constante (C942-L, #8734). Regenerer les zips frais via "
f"provision_lean_data.py avant de faire confiance aux metriques.")
print(f"Donnees: {closes.shape[0]} jours, {closes.shape[1]} actifs")
print(f"Fenetre effective: {closes.index[0].date()} a {closes.index[-1].date()} "
f"(calculee, non announcee -- qb.Time ancres a StartDate, cf commentaire ci-dessus)")Donnees: 1825 jours, 5 actifs
Fenetre effective: 2012-09-28 a 2019-12-31 (calculee, non announcee -- qb.Time ancres a StartDate, cf commentaire ci-dessus)Fenetre effective vs annoncee - honnetete documentaire (#8772).
La cellule d’initialisation annonce Periode: 2020-01-01 a 2024-12-31, mais le DataFrame charge commence au 2012-09-28 et compte 1825 barres (verifiable en tete de la sortie de la cellule precedente, et via Features shape: (1825, 65) plus bas) - soit une fenetre reelle 2012-09-28 -> fin 2019 (debut verifie sur l’index committe ; fin deduite du nombre de barres, identique au pattern imprime par ML-DeepLearning en #8770).
Pourquoi : qb.History(N, Resolution.Daily) recule depuis qb.Time, qui dans un QuantBook frais vaut StartDate (2020-01-01). Un lookback de 365*5 barres demande donc les 5 ans qui precedent 2020, et non les 5 ans declares apres 2020. Les metriques de ce notebook (precision de direction, etc.) sont calculees sur 2012-2019 - une fenetre qui n’inclut ni le COVID ni le drawdown 2022, les deux regimes qu’on s’attendrait precisement a voir.
A ne pas faire : re-fenetrer explicitement sur 2020-2024 tant que l’issue #8734 n’est pas resolue - les donnees equity locales s’arretent au 2021-03-31 et Lean les prolonge en constante via fillDataForward=True, ce qui produirait ~3 ans de plat (l’artefact a l’origine des 100 % de direction accuracy en #8719). La fenetre reculee est, par accident, la raison pour laquelle ce notebook a des donnees reelles.
Reste a faire (garde par #6891, creds QC Cloud requises) : une re-execution via QC Cloud ajoutera la ligne Fenetre effective: imprimee par le code, sur le modele de ML-DeepLearning (#8770). En attendant, cette divulgation documentaire assure l’honnetete interimaire.
def calculate_svm_features(closes, volumes, highs, lows):
"""Calcule les features optimisees pour SVM."""
features = pd.DataFrame()
for ticker in closes.columns:
close = closes[ticker]
volume = volumes[ticker]
high = highs[ticker]
low = lows[ticker]
returns = close.pct_change()
# Moving averages
sma_5 = close.rolling(5).mean()
sma_20 = close.rolling(20).mean()
sma_50 = close.rolling(50).mean()
# RSI (normalise 0-1)
delta = close.diff()
gain = (delta.where(delta > 0, 0)).rolling(14).mean()
loss = (-delta.where(delta < 0, 0)).rolling(14).mean()
rs = gain / loss
rsi = (100 - (100 / (1 + rs))) / 100 # Normalise
# MACD
ema_12 = close.ewm(span=12).mean()
ema_26 = close.ewm(span=26).mean()
macd = ema_12 - ema_26
macd_signal = macd.ewm(span=9).mean()
# Bollinger Band position (-1 a 1)
bb_middle = close.rolling(20).mean()
bb_std = close.rolling(20).std()
bb_position = (close - bb_middle) / (2 * bb_std)
bb_position = bb_position.clip(-2, 2) / 2 # Normalise
# Momentum
mom_5 = close / close.shift(5) - 1
mom_10 = close / close.shift(10) - 1
mom_20 = close / close.shift(20) - 1
# Volatility
volatility = returns.rolling(20).std()
# Volume ratio (normalise)
volume_sma = volume.rolling(20).mean()
volume_ratio = volume / (volume_sma + 0.0001)
volume_ratio = volume_ratio.clip(0, 5) / 5 # Normalise
# Price ratios
price_sma5 = close / sma_5 - 1
price_sma20 = close / sma_20 - 1
price_sma50 = close / sma_50 - 1
# ADX (trend strength)
high_diff = high.diff()
low_diff = -low.diff()
plus_dm = high_diff.where((high_diff > low_diff) & (high_diff > 0), 0)
minus_dm = low_diff.where((low_diff > high_diff) & (low_diff > 0), 0)
high_low = high - low
high_close = abs(high - close.shift())
low_close = abs(low - close.shift())
tr = pd.concat([high_low, high_close, low_close], axis=1).max(axis=1)
atr = tr.rolling(14).mean()
plus_di = 100 * (plus_dm.rolling(14).mean() / (atr + 0.0001))
minus_di = 100 * (minus_dm.rolling(14).mean() / (atr + 0.0001))
dx = 100 * abs(plus_di - minus_di) / (plus_di + minus_di + 0.0001)
adx = dx.rolling(14).mean() / 100 # Normalise
# Combiner
ticker_features = pd.DataFrame({
f'{ticker}_rsi': rsi,
f'{ticker}_bb_position': bb_position,
f'{ticker}_macd_norm': macd / (close + 0.0001),
f'{ticker}_macd_hist_norm': (macd - macd_signal) / (close + 0.0001),
f'{ticker}_mom_5': mom_5,
f'{ticker}_mom_10': mom_10,
f'{ticker}_mom_20': mom_20,
f'{ticker}_volatility': volatility,
f'{ticker}_volume_ratio': volume_ratio,
f'{ticker}_price_sma5': price_sma5,
f'{ticker}_price_sma20': price_sma20,
f'{ticker}_price_sma50': price_sma50,
f'{ticker}_adx': adx.fillna(0.25),
})
features = pd.concat([features, ticker_features], axis=1)
return features.fillna(0)
# Calculer les features
features = calculate_svm_features(closes, volumes, highs, lows)
print(f"Features shape: {features.shape}")
print(f"\nFeatures par actif: {features.shape[1] // len(tickers)}")Features shape: (1825, 65)
Features par actif: 13from sklearn.svm import SVC
from sklearn.preprocessing import StandardScaler
from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score, classification_report
# Preparer les donnees pour SPY
spy_features = features[[c for c in features.columns if 'SPY' in c]]
spy_returns = closes['SPY'].pct_change()
# Target: direction
target = (spy_returns.shift(-1) > 0).astype(int)
# Dataset
data = spy_features.copy()
data['target'] = target
data = data.dropna()
X = data.drop('target', axis=1)
y = data['target']
# Split
X_train, X_test, y_train, y_test = train_test_split(
X, y, test_size=0.2, shuffle=False
)
# CRITICAL: Standardiser pour SVM
scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)
X_test_scaled = scaler.transform(X_test)
print(f"Train: {X_train.shape[0]} samples")
print(f"Test: {X_test.shape[0]} samples")
print(f"\nMoyenne apres standardisation: {X_train_scaled.mean(axis=0)[0]:.4f}")
print(f"Std apres standardisation: {X_train_scaled.std(axis=0)[0]:.4f}")Train: 1460 samples
Test: 365 samples
Moyenne apres standardisation: 0.0000
Std apres standardisation: 1.0000# Entrainer SVM
svm_model = SVC(
C=1.0,
kernel='rbf',
gamma='scale',
probability=True, # Pour obtenir les probabilites
random_state=42
)
svm_model.fit(X_train_scaled, y_train)
# Previsions
y_pred = svm_model.predict(X_test_scaled)
y_proba = svm_model.predict_proba(X_test_scaled)
# Evaluation
accuracy = accuracy_score(y_test, y_pred)
print(f"Accuracy: {accuracy:.2%}")
print(f"\nRapport de classification:")
print(classification_report(y_test, y_pred, target_names=['Baisse', 'Hausse']))Accuracy: 51.78%
Rapport de classification:
precision recall f1-score support
Baisse 0.41 0.21 0.28 161
Hausse 0.55 0.76 0.64 204
accuracy 0.52 365
macro avg 0.48 0.49 0.46 365
weighted avg 0.49 0.52 0.48 365
import matplotlib.pyplot as plt

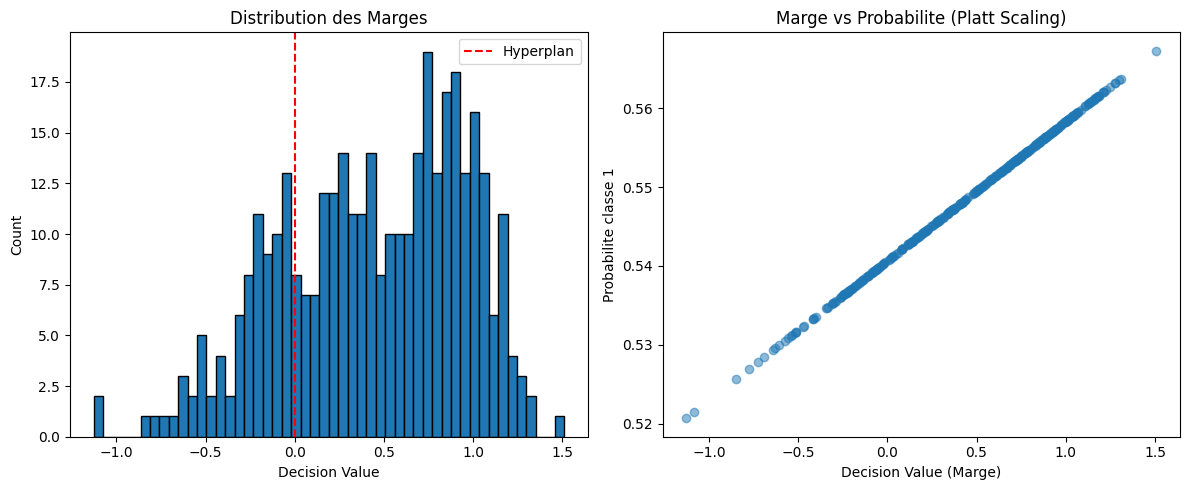

# Distance a l'hyperplan (decision function)
decision_values = svm_model.decision_function(X_test_scaled)
# Visualiser la distribution des marges
plt.figure(figsize=(12, 5))
plt.subplot(1, 2, 1)
plt.hist(decision_values, bins=50, edgecolor='black')
plt.axvline(x=0, color='red', linestyle='--', label='Hyperplan')
plt.xlabel('Decision Value')
plt.ylabel('Count')
plt.title('Distribution des Marges')
plt.legend()
plt.subplot(1, 2, 2)
# Marge vs probabilite
proba_class1 = y_proba[:, 1]
plt.scatter(decision_values, proba_class1, alpha=0.5)
plt.xlabel('Decision Value (Marge)')
plt.ylabel('Probabilite classe 1')
plt.title('Marge vs Probabilite (Platt Scaling)')
plt.tight_layout()
plt.show()
print(f"Marge moyenne: {decision_values.mean():.4f}")
print(f"Marge std: {decision_values.std():.4f}")Marge moyenne: 0.4395
Marge std: 0.5058

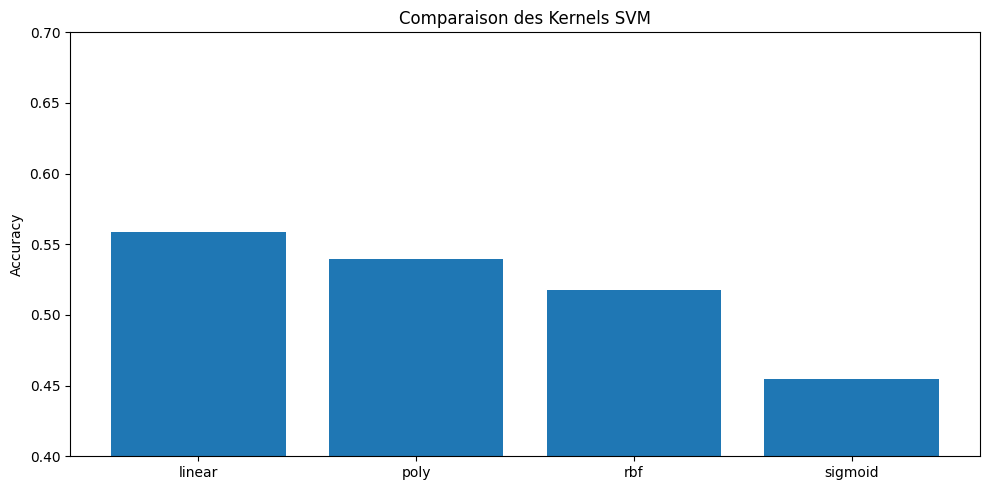

# Comparer differents kernels
kernels = ['linear', 'poly', 'rbf', 'sigmoid']
results = {}
for kernel in kernels:
model = SVC(C=1.0, kernel=kernel, gamma='scale', random_state=42)
model.fit(X_train_scaled, y_train)
pred = model.predict(X_test_scaled)
acc = accuracy_score(y_test, pred)
results[kernel] = acc
print(f"Kernel {kernel}: {acc:.2%}")
# Visualiser
plt.figure(figsize=(10, 5))
plt.bar(results.keys(), results.values())
plt.ylabel('Accuracy')
plt.title('Comparaison des Kernels SVM')
plt.ylim(0.4, 0.7)
plt.tight_layout()
plt.show()Kernel linear: 55.89%
Kernel poly: 53.97%
Kernel rbf: 51.78%
Kernel sigmoid: 45.48%
from sklearn.model_selection import GridSearchCV
# Grille de parametres
param_grid = {
'C': [0.1, 1, 10, 100],
'gamma': ['scale', 'auto', 0.01, 0.1, 1],
'kernel': ['rbf']
}
# Recherche
svm_grid = SVC(random_state=42)
grid_search = GridSearchCV(
svm_grid, param_grid, cv=3, scoring='accuracy', n_jobs=-1, verbose=1
)
grid_search.fit(X_train_scaled, y_train)
print(f"\nMeilleurs parametres: {grid_search.best_params_}")
print(f"Meilleur score: {grid_search.best_score_:.2%}")Fitting 3 folds for each of 20 candidates, totalling 60 fits
Meilleurs parametres: {'C': 0.1, 'gamma': 'scale', 'kernel': 'rbf'}
Meilleur score: 54.93%def walk_forward_svm(X, y, train_size=252, test_size=63):
"""Validation walk-forward pour SVM."""
predictions = []
actuals = []
margins = []
for start in range(0, len(X) - train_size - test_size, test_size):
train_end = start + train_size
test_end = train_end + test_size
# Split
X_train_wf = X.iloc[start:train_end]
y_train_wf = y.iloc[start:train_end]
X_test_wf = X.iloc[train_end:test_end]
y_test_wf = y.iloc[train_end:test_end]
# Standardiser
scaler_wf = StandardScaler()
X_train_scaled = scaler_wf.fit_transform(X_train_wf)
X_test_scaled = scaler_wf.transform(X_test_wf)
# Entrainer
model = SVC(C=1.0, kernel='rbf', gamma='scale', random_state=42)
model.fit(X_train_scaled, y_train_wf)
# Prevoir
pred = model.predict(X_test_scaled)
margin = model.decision_function(X_test_scaled)
predictions.extend(pred)
actuals.extend(y_test_wf.values)
margins.extend(margin)
return np.array(predictions), np.array(actuals), np.array(margins)
# Executer
wf_pred, wf_actual, wf_margins = walk_forward_svm(X, y)
# Resultats
wf_accuracy = (wf_pred == wf_actual).mean()
# Accuracy par niveau de confiance
high_conf_mask = np.abs(wf_margins) > 0.5
high_conf_accuracy = (wf_pred[high_conf_mask] == wf_actual[high_conf_mask]).mean()
print(f"Walk-Forward Accuracy: {wf_accuracy:.2%}")
print(f"High Confidence Accuracy (|margin| > 0.5): {high_conf_accuracy:.2%}")
print(f"High Confidence Samples: {high_conf_mask.sum()}/{len(wf_margins)}")Walk-Forward Accuracy: 53.44%
High Confidence Accuracy (|margin| > 0.5): 53.61%
High Confidence Samples: 929/1512def backtest_svm_strategy(closes, features, train_period=252, rebalance_freq=5):
"""Backtest strategie SVM avec position sizing base sur la marge."""
portfolio_value = 100000
positions = {}
# Only use tickers that actually have feature columns in the DataFrame
available_tickers = []
for t in tickers:
cols = [c for c in features.columns if t in c]
if len(cols) > 0:
available_tickers.append(t)
print(f"Available tickers for backtest: {available_tickers}")
for i in range(train_period, len(closes) - 1, rebalance_freq):
current_date = closes.index[i]
# Entrainer sur SPY features only (consistent with scaler dimensions)
spy_cols = [c for c in features.columns if 'SPY' in c]
if len(spy_cols) == 0:
continue
train_features = features[spy_cols].iloc[i-train_period:i]
spy_returns = closes['SPY'].pct_change().iloc[i-train_period:i]
target = (spy_returns.shift(-1) > 0).astype(int)
train_data = train_features.copy()
train_data['target'] = target
train_data = train_data.dropna()
if len(train_data) < 50:
continue
X_train = train_data.drop('target', axis=1)
y_train = train_data['target']
scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)
model = SVC(C=1.0, kernel='rbf', probability=True, random_state=42)
model.fit(X_train_scaled, y_train)
# Prevoir pour chaque ETF (using each ticker's own features)
predictions = {}
for ticker in available_tickers:
ticker_cols = [c for c in features.columns if ticker in c]
if len(ticker_cols) == 0:
continue
ticker_features = features[ticker_cols]
if len(ticker_features) < i + 1:
continue
latest = ticker_features.iloc[i:i+1]
if latest.shape[1] == 0:
continue
# Projeter les features du ticker sur l'espace du modele (fit sur SPY) :
# memes features dans le meme ordre, noms alignes sur ceux du fit
if list(latest.columns) != list(X_train.columns):
latest = latest.rename(columns=dict(zip(latest.columns, X_train.columns)))
latest_scaled = scaler.transform(latest)
proba = model.predict_proba(latest_scaled)[0]
margin = model.decision_function(latest_scaled)[0]
predictions[ticker] = {
'prob': proba[1],
'margin': margin
}
# Liquider
for t, qty in positions.items():
if t in closes.columns:
portfolio_value += qty * closes[t].iloc[i]
positions = {}
# Nouvelles positions avec confidence weighting
sorted_preds = sorted(predictions.items(),
key=lambda x: x[1]['prob'], reverse=True)
count = 0
for ticker, pred in sorted_preds:
prob = pred['prob']
margin = pred['margin']
if prob > 0.55 and count < 2 and ticker in closes.columns:
# Position sizing base sur la marge
confidence = min(abs(margin) / 2, 1)
position_size = portfolio_value * 0.40 * (0.5 + 0.5 * confidence)
price = closes[ticker].iloc[i]
positions[ticker] = position_size / price
portfolio_value -= position_size
count += 1
# Valeur finale
final_value = portfolio_value
for t, qty in positions.items():
if t in closes.columns:
final_value += qty * closes[t].iloc[-1]
return {
'initial': 100000,
'final': final_value,
'return': (final_value - 100000) / 100000
}
# Executer
results = backtest_svm_strategy(closes, features)
print(f"\nBacktest Results:")
print(f"Valeur initiale: ${results['initial']:,.2f}")
print(f"Valeur finale: ${results['final']:,.2f}")
print(f"Rendement total: {results['return']:.2%}")Available tickers for backtest: ['SPY', 'QQQ', 'IWM', 'TLT', 'GLD']
Backtest Results:
Valeur initiale: $100,000.00
Valeur finale: $139,031.20
Rendement total: 39.03%
