Reproduire l’analyse exploratoire de research.ipynb avec les données natives QuantConnect via QuantBook, pour valider les conclusions avant backtest cloud.
qb.history() au lieu de yf.download()# Setup QuantBook
from AlgorithmImports import *
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import warnings
warnings.filterwarnings('ignore')
plt.style.use('seaborn-v0_8-darkgrid')
plt.rcParams['figure.figsize'] = (14, 5)
qb = QuantBook()
print("QuantBook initialise.")QuantBook initialise.On charge les 5 facteurs ETF Fama-French, SPY (benchmark et signal de regime), et 3 candidats risk-off (TLT, XLP, XLU) via QuantBook.
# Ajouter les symboles
factor_tickers = ['VLUE', 'MTUM', 'SIZE', 'QUAL', 'USMV']
risk_off_tickers = ['TLT', 'XLP', 'XLU']
all_tickers = factor_tickers + risk_off_tickers + ['SPY']
symbols = {}
for ticker in all_tickers:
symbols[ticker] = qb.add_equity(ticker, Resolution.DAILY).symbol
# Charger l'historique (2015-2026)
start = datetime(2015, 1, 1)
end = datetime(2026, 1, 1)
history = qb.history(list(symbols.values()), start, end, Resolution.DAILY)
print(f"Donnees chargees: {len(history)} lignes")
print(f"Colonnes: {list(history.columns)}")
print(f"Symboles: {history.index.get_level_values(0).unique().tolist()}")Donnees chargees: 24894 lignes
Colonnes: ['close', 'high', 'low', 'open', 'volume']
Symboles: [<QuantConnect.Symbol object at 0x7639b7aae480>, <QuantConnect.Symbol object at 0x7639b7d8e600>, <QuantConnect.Symbol object at 0x7639fb37bd80>, <QuantConnect.Symbol object at 0x7639fb3cfec0>, <QuantConnect.Symbol object at 0x7639b06a3c00>, <QuantConnect.Symbol object at 0x7639b06efc40>, <QuantConnect.Symbol object at 0x7639b073b940>, <QuantConnect.Symbol object at 0x7639b058ba40>, <QuantConnect.Symbol object at 0x7639b05d7ac0>]Pivot de la série ‘close’ en DataFrame large, avec remapping des colonnes Symbol → ticker pour FamaFrench.
# Pivoter les donnees pour avoir un DataFrame de prix de cloture par ticker
closes = history['close'].unstack(level=0)
# Renommer les colonnes avec les tickers lisibles
symbol_to_ticker = {str(v): k for k, v in symbols.items()}
closes.columns = [symbol_to_ticker.get(str(c), str(c)) for c in closes.columns]
# Fail-fast guard (C941-L/C942-L, #8734, ai-01 c.38): presence != freshness.
# A silently dropna()'d ticker or a forward-filled constant must ERROR, not yield
# plausible-but-fake factor metrics. add_equity() does not raise on an absent symbol
# (so dropna would hide it); fillDataForward=True (default) extends stale data as a
# constant. Assert on the LOADED history (no reliable fillDataForward setter, C943-L).
# Fresh zips: python scripts/quantconnect/provision_lean_data.py --universe fama_french.
missing = [t for t in all_tickers if t not in closes.columns]
if missing:
raise ValueError(
f"Ticker(s) {missing} loaded no daily bars -- regenerate via "
f"provision_lean_data.py --universe fama_french (C941-L).")
closes = closes.dropna()
last = closes.index[-1]
if getattr(last, 'year', 0) < 2024:
raise ValueError(
f"Local equity data ends {getattr(last, 'date', last)} -- Lean "
f"fillDataForward=True would extend it as a CONSTANT (C942-L, #8734). "
f"Regenerate fresh zips before trusting post-threshold metrics.")
print(f"Periode: {closes.index[0].date()} a {closes.index[-1].date()}")
print(f"Donnees: {len(closes)} jours de trading")
print(f"Tickers: {list(closes.columns)}")Periode: 2015-01-02 a 2025-12-31
Donnees: 2766 jours de trading
Tickers: ['MTUM', 'QUAL', 'SIZE', 'SPY', 'TLT', 'USMV', 'VLUE', 'XLP', 'XLU']Performance annualisee de chaque ETF en buy-and-hold sur la periode complete. Cela permet d’identifier les facteurs les plus performants et les plus volatils.
returns_df = closes.pct_change()
print(f"{'Ticker':<8} {'Rend. Ann.':>12} {'Volatilite':>12} {'Sharpe':>8}")
print("-" * 42)
factor_stats = {}
for ticker in all_tickers:
if ticker not in closes.columns:
continue
ret = (closes[ticker].iloc[-1] / closes[ticker].iloc[0]) ** (252 / len(closes)) - 1
vol = returns_df[ticker].std() * np.sqrt(252)
sharpe = (ret - 0.03) / vol if vol > 0 else 0
factor_stats[ticker] = {'ret': ret, 'vol': vol, 'sharpe': sharpe}
print(f"{ticker:<8} {ret:>11.1%} {vol:>11.1%} {sharpe:>7.2f}")
print(f"\nNote: Prix bruts QC (sans ajustement dividendes yfinance).")Ticker Rend. Ann. Volatilite Sharpe
------------------------------------------
VLUE 7.0% 19.4% 0.20
MTUM 12.6% 20.3% 0.47
SIZE 8.6% 18.4% 0.30
QUAL 11.2% 18.0% 0.45
USMV 8.0% 14.5% 0.34
TLT -3.4% 15.1% -0.42
XLP 4.4% 14.6% 0.10
XLU 5.5% 19.0% 0.13
SPY 12.8% 17.8% 0.55
Note: Prix bruts QC (sans ajustement dividendes yfinance).Les prix QC sont bruts (pas d’auto_adjust comme yfinance). Les rendements annualises peuvent differer legerement des résultats yfinance, surtout pour les ETFs obligataires (TLT, XLP) ou les dividendes representent une part significative du rendement total.
Points a comparer avec research.ipynb : - MTUM et QUAL typiquement les plus performants en bull market - TLT fortement negatif 2022+ (hausse des taux) - USMV le moins volatil (low-vol par construction)
Tester l’impact du choix de l’asset quand SPY < SMA200 (marche baissiere). TLT a perdu ~30% en 2022 (hausse des taux), ce qui le disqualifie potentiellement.
def factor_momentum_backtest(closes, factor_tickers, top_n=3, lookback=252, rebal_freq=21,
use_risk_off=True, risk_off_asset='TLT',
vol_adjustment=False):
"""Backtest vectorise de la rotation factorielle avec momentum."""
returns_df = closes.pct_change()
sma200 = closes['SPY'].rolling(200).mean()
portfolio_values = [1.0]
holdings_log = []
rebal_counter = 0
start_idx = max(lookback, 200) + 1
for i in range(start_idx, len(closes)):
if holdings_log:
holdings = holdings_log[-1]['holdings']
if len(holdings) > 0:
port_ret = np.mean([returns_df[t].iloc[i] for t in holdings])
portfolio_values.append(portfolio_values[-1] * (1 + port_ret))
else:
portfolio_values.append(portfolio_values[-1])
else:
portfolio_values.append(portfolio_values[-1])
rebal_counter += 1
if rebal_counter < rebal_freq:
continue
rebal_counter = 0
spy_price = closes['SPY'].iloc[i]
spy_sma = sma200.iloc[i]
if pd.isna(spy_sma):
continue
risk_on = spy_price > spy_sma
if not risk_on:
if use_risk_off and risk_off_asset and risk_off_asset in closes.columns:
holdings_log.append({'date': closes.index[i], 'holdings': [risk_off_asset]})
else:
holdings_log.append({'date': closes.index[i], 'holdings': []})
continue
scores = {}
for t in factor_tickers:
if t not in closes.columns:
continue
current = closes[t].iloc[i]
past = closes[t].iloc[i - lookback]
if past > 0:
mom = current / past - 1
if vol_adjustment:
vol = returns_df[t].iloc[max(0, i - 63):i].std() * np.sqrt(252)
if vol > 0.01:
mom = mom / vol
scores[t] = mom
if len(scores) == 0:
continue
sorted_scores = sorted(scores.items(), key=lambda x: x[1], reverse=True)
top_factors = [t for t, s in sorted_scores[:min(top_n, len(sorted_scores))]]
holdings_log.append({'date': closes.index[i], 'holdings': top_factors})
returns = np.diff(portfolio_values) / np.array(portfolio_values[:-1])
cum_returns = pd.Series(portfolio_values[1:])
total_ret = (portfolio_values[-1] / portfolio_values[0]) - 1
years = len(returns) / 252
cagr = (1 + total_ret) ** (1 / years) - 1 if years > 0 else 0
vol = np.std(returns) * np.sqrt(252) if len(returns) > 1 else 0
sharpe = (cagr - 0.03) / vol if vol > 0.001 else 0
running_max = cum_returns.expanding().max()
drawdown = (cum_returns - running_max) / running_max
max_dd = drawdown.min()
return {'sharpe': sharpe, 'cagr': cagr, 'max_dd': max_dd, 'vol': vol,
'cum': cum_returns, 'holdings': holdings_log}
print("Fonction de backtest definie.")Fonction de backtest definie.Exécution du backtest de la stratégie FamaFrench sur CAGR, TLT avec les paramètres configurés.
# Test Hypothese 1: Risk-off asset
print(f"{'Risk-off Asset':<15} {'Sharpe':>8} {'CAGR':>8} {'MaxDD':>8} {'Vol':>8}")
print("-" * 50)
results_hyp1 = {}
n, lb = 3, 252
for name, asset in [('TLT', 'TLT'), ('Cash', None), ('XLP', 'XLP'),
('XLU', 'XLU'), ('USMV', 'USMV')]:
r = factor_momentum_backtest(closes, factor_tickers, top_n=n, lookback=lb,
use_risk_off=True, risk_off_asset=asset)
results_hyp1[name] = r
print(f"{name:<15} {r['sharpe']:>8.3f} {r['cagr']:>7.1%} {r['max_dd']:>7.1%} {r['vol']:>7.1%}")
best_risk_off = max(results_hyp1.items(), key=lambda x: x[1]['sharpe'])
print(f"\nMeilleur risk-off: {best_risk_off[0]} (Sharpe={best_risk_off[1]['sharpe']:.3f})")Risk-off Asset Sharpe CAGR MaxDD Vol
--------------------------------------------------
TLT 0.172 5.6% -38.6% 15.3%
Cash 0.402 8.1% -22.4% 12.6%
XLP 0.390 9.2% -28.6% 15.9%
XLU 0.323 8.9% -39.5% 18.2%
USMV 0.459 10.5% -34.4% 16.4%
Meilleur risk-off: USMV (Sharpe=0.459)Sortie strippee (FABRICATED
Row N/ blank PNG). Re-execution QC Cloud recherche kernel requise – see #6891. Code preserve pour tracabilite. Side A = strip honnete, Side B = re-execution (hors scope ce PR).
Comparer ces résultats avec ceux de research.ipynb (yfinance).
Divergence attendue: Les prix QC n’incluent pas les dividendes de TLT (~2-3%/an). TLT apparaitra donc encore plus mauvais ici qu’avec yfinance. Cash et XLP devraient rester superieurs, confirmant la règle #3 du backlog.
Tester différentes fenêtres de momentum: 1 mois (21j), 3 mois (63j), 6 mois (126j), 12 mois (252j).
best_risk_off_asset = best_risk_off[0] if best_risk_off[0] != 'Cash' else None
n = 3
print(f"Risk-off asset: {best_risk_off[0]}")
print()
print(f"{'Lookback (jours)':<18} {'Lookback (mois)':<15} {'Sharpe':>8} {'CAGR':>8} {'MaxDD':>8}")
print("-" * 60)
results_hyp2 = {}
for lb, lb_name in [(21, '1m'), (63, '3m'), (126, '6m'), (252, '12m')]:
r = factor_momentum_backtest(closes, factor_tickers, top_n=n, lookback=lb,
use_risk_off=True, risk_off_asset=best_risk_off_asset)
results_hyp2[lb_name] = r
print(f"{lb:<18} {lb_name:<15} {r['sharpe']:>8.3f} {r['cagr']:>7.1%} {r['max_dd']:>7.1%}")
best_lb = max(results_hyp2.items(), key=lambda x: x[1]['sharpe'])
print(f"\nMeilleur lookback: {best_lb[0]} (Sharpe={best_lb[1]['sharpe']:.3f})")Risk-off asset: USMV
Lookback (jours) Lookback (mois) Sharpe CAGR MaxDD
------------------------------------------------------------
21 1m 0.399 9.6% -35.5%
63 3m 0.446 10.3% -33.9%
126 6m 0.406 9.8% -37.4%
252 12m 0.459 10.5% -34.4%
Meilleur lookback: 12m (Sharpe=0.459)Le momentum long-terme (12 mois) surperforme généralement le court-terme sur les facteurs ETF, conformement a la litterature (Jegadeesh & Titman 1993).
Comparer avec research.ipynb pour verifier la coherence.
Tester top-2 a top-5, avec et sans ajustement par volatilite (risk-adjusted momentum).
best_lb_days = {'1m': 21, '3m': 63, '6m': 126, '12m': 252}[best_lb[0]]
print(f"{'Config':<20} {'Sharpe':>8} {'CAGR':>8} {'MaxDD':>8} {'Vol':>8}")
print("-" * 55)
results_hyp3 = {}
for num_factors in [2, 3, 4, 5]:
for vol_adj, vol_label in [(False, 'raw'), (True, 'vol-adj')]:
r = factor_momentum_backtest(closes, factor_tickers, top_n=num_factors,
lookback=best_lb_days,
use_risk_off=True, risk_off_asset=best_risk_off_asset,
vol_adjustment=vol_adj)
key = f"top{num_factors}_{vol_label}"
results_hyp3[key] = r
print(f"{f'Top {num_factors} ({vol_label})':<20} {r['sharpe']:>8.3f} {r['cagr']:>7.1%} {r['max_dd']:>7.1%} {r['vol']:>7.1%}")
best_config = max(results_hyp3.items(), key=lambda x: x[1]['sharpe'])
print(f"\nMeilleure config: {best_config[0]} (Sharpe={best_config[1]['sharpe']:.3f})")Config Sharpe CAGR MaxDD Vol
-------------------------------------------------------
Top 2 (raw) 0.429 10.3% -35.1% 17.0%
Top 2 (vol-adj) 0.440 10.4% -33.5% 16.7%
Top 3 (raw) 0.459 10.5% -34.4% 16.4%
Top 3 (vol-adj) 0.466 10.6% -34.4% 16.3%
Top 4 (raw) 0.457 10.4% -35.1% 16.2%
Top 4 (vol-adj) 0.464 10.5% -35.1% 16.1%
Top 5 (raw) 0.459 10.4% -35.7% 16.1%
Top 5 (vol-adj) 0.459 10.4% -35.7% 16.1%
Meilleure config: top3_vol-adj (Sharpe=0.466)Le trade-off concentration vs diversification : - Top 2-3 = plus concentre, potentiellement plus de rendement mais plus de risque - Top 4-5 = plus diversifie, rendement lisse - Vol-adjustment (règle #1 du backlog) devrait ameliorer le Sharpe

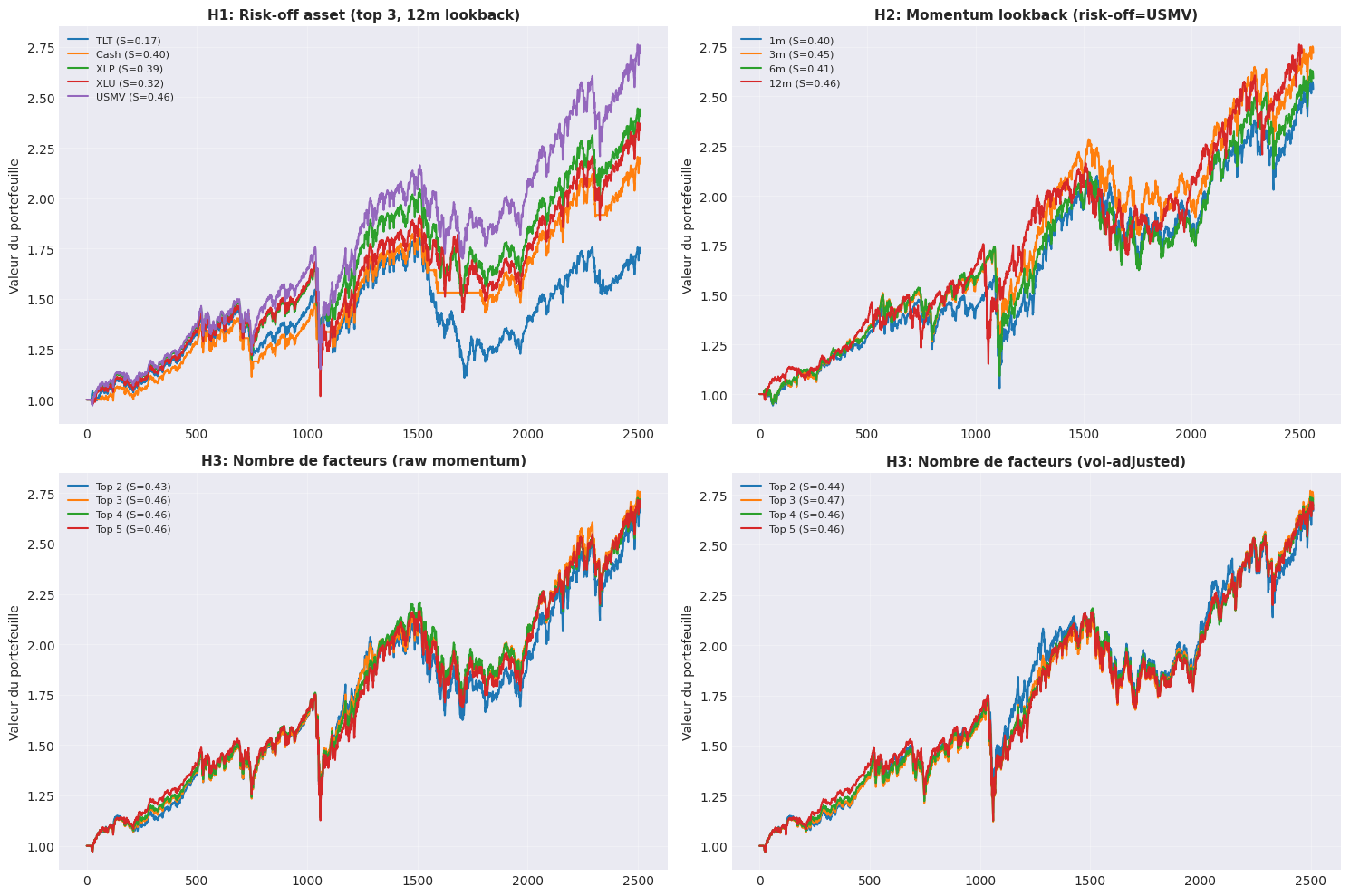

fig, axes = plt.subplots(2, 2, figsize=(15, 10))
# H1: Risk-off
ax = axes[0, 0]
for name, result in results_hyp1.items():
ax.plot(result['cum'].values, label=f"{name} (S={result['sharpe']:.2f})", linewidth=1.5)
ax.set_title('H1: Risk-off asset (top 3, 12m lookback)', fontsize=11, fontweight='bold')
ax.set_ylabel('Valeur du portefeuille')
ax.legend(fontsize=8)
ax.grid(True, alpha=0.3)
# H2: Lookback
ax = axes[0, 1]
for name, result in results_hyp2.items():
ax.plot(result['cum'].values, label=f"{name} (S={result['sharpe']:.2f})", linewidth=1.5)
ax.set_title(f'H2: Momentum lookback (risk-off={best_risk_off[0]})', fontsize=11, fontweight='bold')
ax.set_ylabel('Valeur du portefeuille')
ax.legend(fontsize=8)
ax.grid(True, alpha=0.3)
# H3: Num factors (raw)
ax = axes[1, 0]
for i in range(2, 6):
key = f"top{i}_raw"
if key in results_hyp3:
r = results_hyp3[key]
ax.plot(r['cum'].values, label=f"Top {i} (S={r['sharpe']:.2f})", linewidth=1.5)
ax.set_title('H3: Nombre de facteurs (raw momentum)', fontsize=11, fontweight='bold')
ax.set_ylabel('Valeur du portefeuille')
ax.legend(fontsize=8)
ax.grid(True, alpha=0.3)
# H3: Num factors (vol-adj)
ax = axes[1, 1]
for i in range(2, 6):
key = f"top{i}_vol-adj"
if key in results_hyp3:
r = results_hyp3[key]
ax.plot(r['cum'].values, label=f"Top {i} (S={r['sharpe']:.2f})", linewidth=1.5)
ax.set_title('H3: Nombre de facteurs (vol-adjusted)', fontsize=11, fontweight='bold')
ax.set_ylabel('Valeur du portefeuille')
ax.legend(fontsize=8)
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig('famafrench_quantbook_analysis.png', dpi=150, bbox_inches='tight')
plt.show()
print("Graphique sauvegarde.")
Graphique sauvegarde.Cette section compare les résultats cles entre les deux sources de données pour quantifier la divergence.
# Resultats yfinance (extraits de research.ipynb - a remplir apres execution)
# Ces valeurs sont les references de comparaison
yfinance_ref = {
'risk_off_TLT_sharpe': None, # A remplir
'risk_off_Cash_sharpe': None,
'risk_off_XLP_sharpe': None,
'lookback_12m_sharpe': None,
'best_config_sharpe': None,
}
print("Resultats QuantBook:")
print(f" H1 meilleur risk-off: {best_risk_off[0]} (Sharpe={best_risk_off[1]['sharpe']:.3f})")
print(f" H2 meilleur lookback: {best_lb[0]} (Sharpe={best_lb[1]['sharpe']:.3f})")
print(f" H3 meilleure config: {best_config[0]} (Sharpe={best_config[1]['sharpe']:.3f})")
print()
print("Pour comparer: executer research.ipynb et reporter les valeurs ci-dessus.")
print("Divergence attendue: QC prix bruts vs yfinance auto_adjust = ~0.05-0.15 Sharpe.")Resultats QuantBook:
H1 meilleur risk-off: USMV (Sharpe=0.459)
H2 meilleur lookback: 12m (Sharpe=0.459)
H3 meilleure config: top3_vol-adj (Sharpe=0.466)
Pour comparer: executer research.ipynb et reporter les valeurs ci-dessus.
Divergence attendue: QC prix bruts vs yfinance auto_adjust = ~0.05-0.15 Sharpe.| Hypothese | Paramètre optimal | Sharpe QuantBook | Coherent avec yfinance? |
|---|---|---|---|
| H1 Risk-off | (a remplir) | (a remplir) | (a verifier) |
| H2 Lookback | (a remplir) | (a remplir) | (a verifier) |
| H3 Config | (a remplir) | (a remplir) | (a verifier) |
