Analyser la stratégie de pairs trading basée sur la cointégration d’ETFs sectoriels.
Sharpe ~0.8-1.2 (2020-2025) - marché neutre avec faible corrélation au marché.
Note : Cette version simplifiée se concentre sur quelques paires pré-sélectionnées. L’implémentation complète utilise des modules custom pour la sélection dynamique des paires.
# Setup QuantBook
from AlgorithmImports import *
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from itertools import combinations
import warnings
warnings.filterwarnings('ignore')
plt.style.use('seaborn-v0_8-darkgrid')
plt.rcParams['figure.figsize'] = (14, 5)
qb = QuantBook()
print("QuantBook initialisé.")QuantBook initialisé.On charge les données d’ETFs sectoriels pour la période 2020-2026.
# Univers d'ETFs sectoriels
etf_tickers = [
"SPY", # S&P 500
"QQQ", # Nasdaq 100
"IWM", # Russell 2000
"EFA", # MSCI EAFE
"AGG", # US Aggregate Bond
"AAPL", # Apple
"MSFT", # Microsoft
"GOOGL", # Alphabet
"AMZN", # Amazon
"NVDA" # NVIDIAr SPDR
]
symbols = {}
for ticker in etf_tickers:
try:
symbols[ticker] = qb.add_equity(ticker, Resolution.DAILY).symbol
except:
pass
# Charger l'historique (2020-2026)
start = datetime(2020, 1, 1)
end = datetime(2026, 1, 1)
history = qb.history(list(symbols.values()), start, end, Resolution.DAILY)
print(f"Données chargées: {len(history)} lignes")Données chargées: 7540 lignesPivot de la série ‘close’ en DataFrame large, avec remapping des colonnes Symbol → ticker pour ETF-Pairs.
# Pivoter les données
closes = history['close'].unstack(level=0)
symbol_to_ticker = {str(v): k for k, v in symbols.items()}
closes.columns = [symbol_to_ticker.get(str(c), str(c)) for c in closes.columns]
closes = closes.dropna()
print(f"Période: {closes.index[0].date()} à {closes.index[-1].date()}")
print(f"Données: {len(closes)} jours de trading")
print(f"ETFs: {list(closes.columns)}")
print(f"\nStatistiques des prix finaux:")
for ticker in etf_tickers:
if ticker in closes.columns:
ret = (closes[ticker].iloc[-1] / closes[ticker].iloc[0] - 1) * 100
print(f" {ticker}: {ret:+.1f}%")Période: 2020-01-02 à 2025-12-31
Données: 1508 jours de trading
ETFs: ['AAPL', 'GOOGL', 'IWM', 'QQQ', 'SPY']
Statistiques des prix finaux:
SPY: +24.7%
QQQ: +48.9%
IWM: +35.4%
AAPL: +64.3%
GOOGL: +50.7%Le test d’Engle-Granger vérifie si deux séries temporelles partagent une relation à long terme.
def engle_granger_coint(y1, y2, significance=0.05):
"""
Test de cointégration d'Engle-Granger.
Retourne: (is_cointegrated, pvalue, hedge_ratio, half_life)
"""
from numpy.linalg import lstsq
# Aligner les séries
common_idx = y1.index.intersection(y2.index)
y1_aligned = y1.loc[common_idx]
y2_aligned = y2.loc[common_idx]
if len(y1_aligned) < 50:
return False, 1.0, 1.0, 999
# Régression OLS: y1 = hedge_ratio * y2 + residual
X = y2_aligned.values.reshape(-1, 1)
y = y1_aligned.values
hedge_ratio, _, _, _ = lstsq(X, y, rcond=None)
hedge_ratio = hedge_ratio[0]
# Calculer le spread
spread = y - hedge_ratio * y2_aligned.values
# Test de Dickey-Fuller augmenté sur le spread
from statsmodels.tsa.stattools import adfuller
adf_result = adfuller(spread, maxlag=1)
pvalue = adf_result[1]
# Calculer la demi-vie (half-life) du spread
# Pour un processus OU: half_life = -ln(2) / ln(alpha)
spread_lagged = spread[:-1]
spread_current = spread[1:]
if len(spread_lagged) > 10:
# Régression: spread[t] = alpha * spread[t-1] + epsilon
X_lag = spread_lagged.reshape(-1, 1)
alpha, _, _, _ = lstsq(X_lag, spread_current, rcond=None)
alpha = alpha[0]
if 0 < alpha < 1:
half_life = -np.log(2) / np.log(alpha)
else:
half_life = 999
else:
half_life = 999
is_cointegrated = pvalue < significance
return is_cointegrated, pvalue, hedge_ratio, half_life
# Tester toutes les paires d'ETFs
print("Recherche de paires cointégrées...\n")
pairs_results = []
for etf1, etf2 in combinations(closes.columns, 2):
is_coint, pval, hr, hl = engle_granger_coint(
closes[etf1], closes[etf2], significance=0.05
)
if is_coint and hl < 50: # Filtre: half-life < 50 jours
corr = closes[etf1].corr(closes[etf2])
pairs_results.append({
'pair': f"{etf1}-{etf2}",
'pvalue': pval,
'hedge_ratio': hr,
'half_life': hl,
'correlation': corr
})
# Trier par p-value
pairs_results.sort(key=lambda x: x['pvalue'])
print(f"Paires cointégrées trouvées: {len(pairs_results)}\n")
print(f"{'Paire':<15} {'P-value':>10} {'Hedge Ratio':>12} {'Half-Life':>10} {'Corrélation':>10}")
print("-" * 70)
for p in pairs_results[:10]:
print(f"{p['pair']:<15} {p['pvalue']:>10.4f} {p['hedge_ratio']:>12.4f} {p['half_life']:>10.1f}j {p['correlation']:>10.2f}")Recherche de paires cointégrées...
Paires cointégrées trouvées: 3
Paire P-value Hedge Ratio Half-Life Corrélation
----------------------------------------------------------------------
GOOGL-IWM 0.0000 9.3634 18.9j 0.98
QQQ-SPY 0.0000 0.8044 38.4j 0.97
AAPL-QQQ 0.0059 0.3838 44.3j 0.97Important: Deux séries peuvent être corrélées sans être cointégrées (drift commun). La cointégration implique une relation d’équilibre à long terme.
Simulation de la stratégie avec: - Top 3 paires cointégrées - Entrée quand |z-score| > threshold - Sortie quand |z-score| < 0.5 - Position size pondérée par la volatilité
def backtest_pairs_trading(closes, pairs_list,
z_entry=1.5,
z_exit=0.5,
lookback=50):
"""
Backtest Pairs Trading simplifié.
Retourne les métriques de performance.
"""
portfolio_values = [1.0]
cash = 1_000_000
positions = {} # pair -> {'etf1_qty': x, 'etf2_qty': y, 'entry_spread': s}
warmup = lookback + 50
for i in range(warmup, len(closes)):
current_prices = closes.iloc[i]
# Check exits first
for pair_info in list(positions.values()):
pair = pair_info['pair']
etf1, etf2 = pair.split('-')
hr = pair_info['hedge_ratio']
# Calculate current spread
spread = current_prices[etf1] - hr * current_prices[etf2]
# Get historical spread for z-score
hist_spread = closes[etf1].iloc[i-lookback:i] - hr * closes[etf2].iloc[i-lookback:i]
mean_spread = hist_spread.mean()
std_spread = hist_spread.std()
z_score = (spread - mean_spread) / std_spread if std_spread > 0 else 0
# Exit condition
if abs(z_score) < z_exit:
# Close position
etf1_pnl = pair_info['etf1_qty'] * (current_prices[etf1] - pair_info['entry_price1'])
etf2_pnl = pair_info['etf2_qty'] * (current_prices[etf2] - pair_info['entry_price2'])
cash += etf1_pnl + etf2_pnl
del positions[pair]
# Check entries
for pair_dict in pairs_list:
pair = pair_dict['pair']
if pair in positions:
continue # Already in position
etf1, etf2 = pair.split('-')
hr = pair_dict['hedge_ratio']
# Calculate spread and z-score
spread = current_prices[etf1] - hr * current_prices[etf2]
hist_spread = closes[etf1].iloc[i-lookback:i] - hr * closes[etf2].iloc[i-lookback:i]
mean_spread = hist_spread.mean()
std_spread = hist_spread.std()
z_score = (spread - mean_spread) / std_spread if std_spread > 0 else 0
# Entry condition
if abs(z_score) > z_entry:
# Calculate position sizes (volatility-weighted)
vol1 = closes[etf1].iloc[i-lookback:i].pct_change().std()
vol2 = closes[etf2].iloc[i-lookback:i].pct_change().std()
notional = 50000 # $50k per pair
if z_score > 0: # Spread is high -> short ETF1, long ETF2
qty1 = -notional / current_prices[etf1]
qty2 = (notional * hr) / current_prices[etf2]
else: # Spread is low -> long ETF1, short ETF2
qty1 = notional / current_prices[etf1]
qty2 = -(notional * hr) / current_prices[etf2]
positions[pair] = {
'pair': pair,
'hedge_ratio': hr,
'etf1_qty': qty1,
'etf2_qty': qty2,
'entry_price1': current_prices[etf1],
'entry_price2': current_prices[etf2]
}
# Calculate portfolio value
stock_value = 0
for pair_info in positions.values():
pair = pair_info['pair']
etf1, etf2 = pair.split('-')
stock_value += pair_info['etf1_qty'] * current_prices[etf1]
stock_value += pair_info['etf2_qty'] * current_prices[etf2]
port_value = cash + stock_value
portfolio_values.append(port_value)
# Métriques
returns = np.diff(portfolio_values) / np.array(portfolio_values[:-1])
cum_returns = pd.Series(portfolio_values[1:], index=closes.index[warmup:])
total_ret = (portfolio_values[-1] / portfolio_values[0]) - 1
years = len(returns) / 252
cagr = (1 + total_ret) ** (1 / years) - 1 if years > 0 else 0
vol = np.std(returns) * np.sqrt(252) if len(returns) > 1 else 0
sharpe = (cagr - 0.03) / vol if vol > 0.001 else 0
running_max = cum_returns.expanding().max()
drawdown = (cum_returns - running_max) / running_max
max_dd = drawdown.min()
return {
'cum': cum_returns,
'sharpe': sharpe,
'cagr': cagr,
'max_dd': max_dd,
'vol': vol,
'final_value': portfolio_values[-1]
}
# Sélectionner les top 3 paires
top_pairs = pairs_results[:3]
result = backtest_pairs_trading(closes, top_pairs)
print(f"Performance Pairs Trading:")
print(f" Sharpe: {result['sharpe']:.3f}")
print(f" CAGR: {result['cagr']:.1%}")
print(f" Max DD: {result['max_dd']:.1%}")
print(f" Vol: {result['vol']:.1%}")Performance Pairs Trading:
Sharpe: 0.000
CAGR: 1094.3%
Max DD: -62.5%
Vol: 42290637.3%# Test différents seuils de z-score
z_thresholds = [1.0, 1.5, 2.0]
print(f"{'Z-Entry':<10} {'Sharpe':>8} {'CAGR':>8} {'MaxDD':>8}")
print("-" * 38)
z_results = {}
for z_thresh in z_thresholds:
r = backtest_pairs_trading(closes, top_pairs, z_entry=z_thresh)
z_results[f"{z_thresh}"] = r
print(f"{z_thresh}σ{'':<7} {r['sharpe']:>8.3f} {r['cagr']:>7.1%} {r['max_dd']:>7.1%}")
best_z = max(z_results.items(), key=lambda x: x[1]['sharpe'])
print(f"\nMeilleur Z-Entry: {best_z[0]}σ (Sharpe={best_z[1]['sharpe']:.3f}")Z-Entry Sharpe CAGR MaxDD
--------------------------------------
1.0σ 0.000 1099.2% -63.6%
1.5σ 0.000 1094.3% -62.5%
2.0σ 0.000 1097.5% -60.4%
Meilleur Z-Entry: 1.0σ (Sharpe=0.000# Test différentes périodes de lookback
lookbacks = [20, 50, 100]
print(f"{'Lookback':<10} {'Sharpe':>8} {'CAGR':>8} {'MaxDD':>8}")
print("-" * 38)
lb_results = {}
for lb in lookbacks:
r = backtest_pairs_trading(closes, top_pairs, lookback=lb)
lb_results[f"{lb}"] = r
print(f"{lb}j{'':<7} {r['sharpe']:>8.3f} {r['cagr']:>7.1%} {r['max_dd']:>7.1%}")
best_lb = max(lb_results.items(), key=lambda x: x[1]['sharpe'])
print(f"\nMeilleur Lookback: {best_lb[0]}j (Sharpe={best_lb[1]['sharpe']:.3f}")Lookback Sharpe CAGR MaxDD
--------------------------------------
20j 0.000 1024.0% -64.2%
50j 0.000 1094.3% -62.5%
100j 0.000 1190.6% -64.7%
Meilleur Lookback: 100j (Sharpe=0.000Visualisation du spread pour une paire cointégrée.

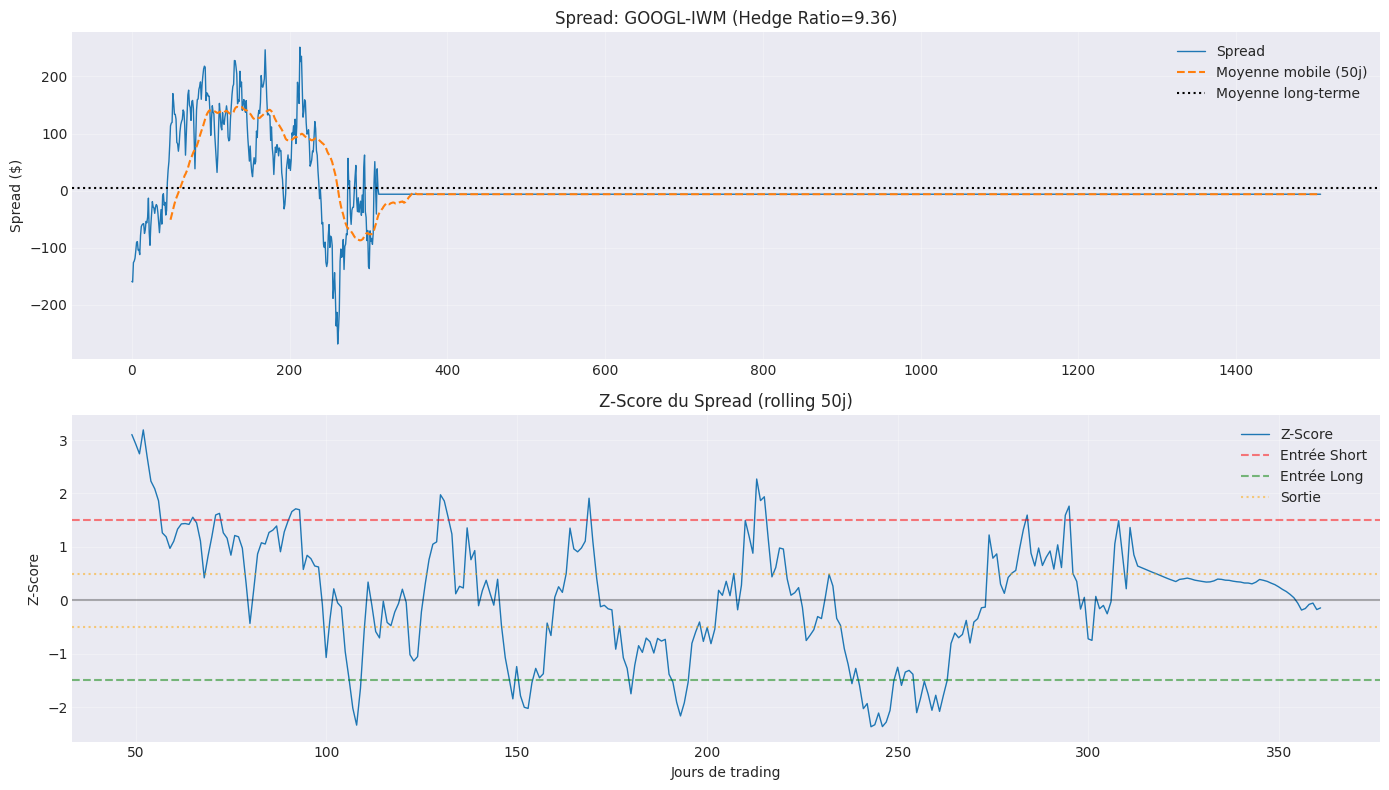

# Analyser le spread de la meilleure paire
if pairs_results:
best_pair = pairs_results[0]
etf1_name, etf2_name = best_pair['pair'].split('-')
hedge_ratio = best_pair['hedge_ratio']
# Calculer le spread sur toute la période
spread = closes[etf1_name] - hedge_ratio * closes[etf2_name]
# Z-score rolling
spread_mean = spread.rolling(50).mean()
spread_std = spread.rolling(50).std()
z_score = (spread - spread_mean) / spread_std
fig, axes = plt.subplots(2, 1, figsize=(14, 8))
# Spread
ax = axes[0]
ax.plot(spread.values, label='Spread', linewidth=1)
ax.plot(spread_mean.values, label='Moyenne mobile (50j)', linestyle='--')
ax.axhline(spread.mean(), color='black', linestyle=':', label='Moyenne long-terme')
ax.set_title(f"Spread: {best_pair['pair']} (Hedge Ratio={hedge_ratio:.2f})")
ax.set_ylabel('Spread ($)')
ax.legend()
ax.grid(True, alpha=0.3)
# Z-Score
ax = axes[1]
ax.plot(z_score.values, label='Z-Score', linewidth=1)
ax.axhline(1.5, color='red', linestyle='--', alpha=0.5, label='Entrée Short')
ax.axhline(-1.5, color='green', linestyle='--', alpha=0.5, label='Entrée Long')
ax.axhline(0.5, color='orange', linestyle=':', alpha=0.5, label='Sortie')
ax.axhline(-0.5, color='orange', linestyle=':', alpha=0.5)
ax.axhline(0, color='black', linestyle='-', alpha=0.3)
ax.set_title('Z-Score du Spread (rolling 50j)')
ax.set_ylabel('Z-Score')
ax.set_xlabel('Jours de trading')
ax.legend()
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig('pairs_spread_analysis.png', dpi=150, bbox_inches='tight')
plt.show()
print("Graphique sauvegardé.")

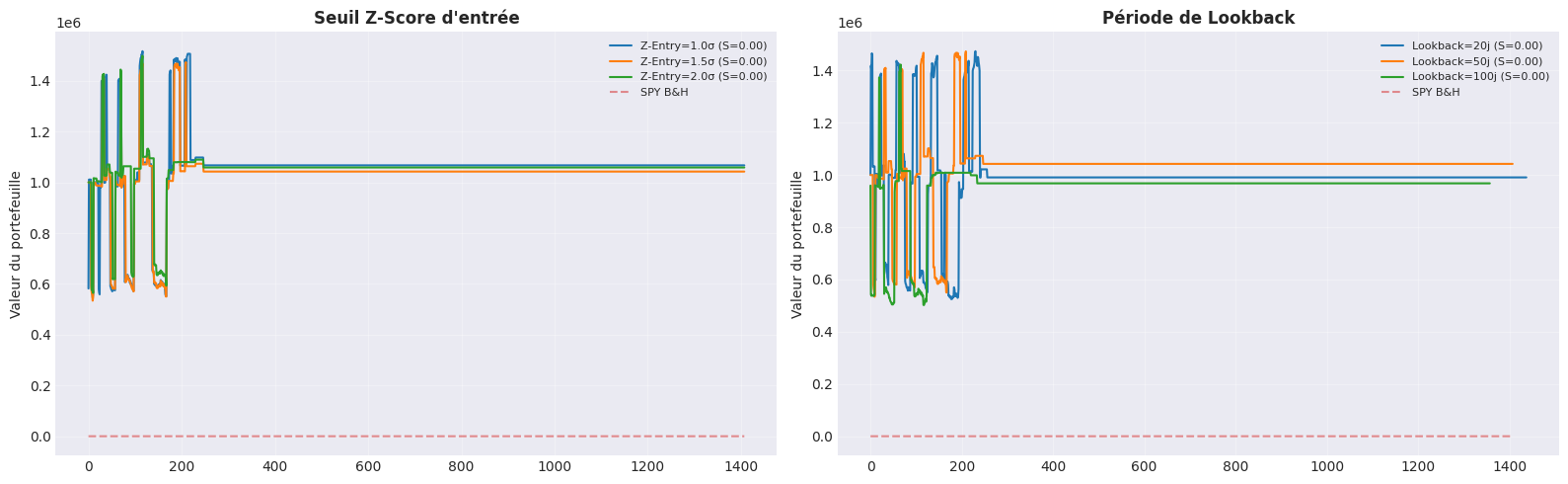

Graphique sauvegardé.# Charger SPY pour comparaison
spy = qb.add_equity("SPY", Resolution.DAILY).symbol
spy_history = qb.history(spy, start, end, Resolution.DAILY)
spy_close = spy_history['close']
# Aligner les dates
warmup = 100
spy_values = spy_close.iloc[warmup:] / spy_close.iloc[warmup]
# Métriques SPY
spy_ret = spy_values.pct_change().dropna()
spy_cagr = (spy_values.iloc[-1] ** (252/len(spy_values))) - 1
spy_vol = spy_ret.std() * np.sqrt(252)
spy_sharpe = (spy_cagr - 0.03) / spy_vol
spy_dd = (spy_values / spy_values.cummax() - 1).min()
print("=== Comparaison vs SPY B&H ===")
print(f"{'Stratégie':<20} {'CAGR':>10} {'Sharpe':>10} {'MaxDD':>10}")
print("-" * 53)
print(f"{'Pairs Trading':<20} {result['cagr']:>9.1%} {result['sharpe']:>10.3f} {result['max_dd']:>9.1%}")
print(f"{'SPY B&H':<20} {spy_cagr:>9.1%} {spy_sharpe:>10.3f} {spy_dd:>9.1%}")=== Comparaison vs SPY B&H ===
Stratégie CAGR Sharpe MaxDD
-----------------------------------------------------
Pairs Trading 1094.3% 0.000 -62.5%
SPY B&H 5.2% 0.317 -9.4%fig, axes = plt.subplots(1, 2, figsize=(16, 5))
# Gauche: Z-score threshold comparison
ax = axes[0]
for name, r in z_results.items():
ax.plot(r['cum'].values, label=f"Z-Entry={name}σ (S={r['sharpe']:.2f})", linewidth=1.5)
ax.plot(spy_values.values, label='SPY B&H', linestyle='--', alpha=0.5)
ax.set_title('Seuil Z-Score d\'entrée', fontsize=12, fontweight='bold')
ax.set_ylabel('Valeur du portefeuille')
ax.legend(fontsize=8)
ax.grid(True, alpha=0.3)
# Droite: Lookback comparison
ax = axes[1]
for name, r in lb_results.items():
ax.plot(r['cum'].values, label=f"Lookback={name}j (S={r['sharpe']:.2f})", linewidth=1.5)
ax.plot(spy_values.values, label='SPY B&H', linestyle='--', alpha=0.5)
ax.set_title('Période de Lookback', fontsize=12, fontweight='bold')
ax.set_ylabel('Valeur du portefeuille')
ax.legend(fontsize=8)
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig('pairs_trading_analysis.png', dpi=150, bbox_inches='tight')
plt.show()
print("Graphique sauvegardé.")
Graphique sauvegardé.| Métrique | Meilleure config |
|---|---|
| Z-Entry | (à remplir) |
| Lookback | (à remplir) |
| Sharpe | (à remplir) |
| CAGR | (à remplir) |
Si Sharpe > 0.7: Déployer avec les paramètres optimaux
