Analyser la stratégie ML améliorée sur BTCUSDT avec RandomForestClassifier et filtres multi-couches.
Sharpe ~1.2 (2023-2024) avec filtres optimisés.
Note : Ce notebook utilise une approche simplifiée pour la recherche. Le modèle complet utilise ObjectStore pour la persistance.
# Setup QuantBook
from AlgorithmImports import *
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import warnings
from sklearn.ensemble import RandomForestClassifier
warnings.filterwarnings('ignore')
plt.style.use('seaborn-v0_8-darkgrid')
plt.rcParams['figure.figsize'] = (14, 5)
qb = QuantBook()
print("QuantBook initialisé.")QuantBook initialisé.On charge les données BTCUSDT pour la période 2019-2026 (training + backtest).
# BTCUSDT sur Binance
btc = qb.add_crypto("BTCUSDT", Resolution.DAILY, Market.BINANCE)
# Période étendue pour multi-regime
start = datetime(2019, 1, 1)
end = datetime(2026, 1, 1)
history = qb.history(btc.symbol, start, end, Resolution.DAILY)
print(f"Données chargées: {len(history)} lignes")Données chargées: 2557 lignesExtraction des séries close, high et low de BTCUSD et affichage des statistiques de prix (initial, final, rendement total) pour BTC-ML.
# Preparer les donnees
if len(history) == 0:
closes = None
highs = None
lows = None
print("WARNING: No BTCUSDT data returned from QC Cloud.")
print("Crypto daily data may not be available in this environment.")
print("All analysis cells will be skipped.")
else:
# c.935 MultiIndex guard: qb.history single-symbol returns (symbol,time) index -> drop symbol level
if isinstance(history.index, pd.MultiIndex):
history = history.reset_index(level=0, drop=True)
closes = history['close']
highs = history['high']
lows = history['low']
print(f"Periode: {closes.index[0].date()} a {closes.index[-1].date()}")
print(f"Donnees: {len(closes)} jours")
print(f"\nStatistiques BTC:")
print(f" Prix initial: ${closes.iloc[0]:.2f}")
print(f" Prix final: ${closes.iloc[-1]:.2f}")
print(f" Return total: {(closes.iloc[-1]/closes.iloc[0] - 1):.1%}")Periode: 2019-01-02 a 2026-01-01
Donnees: 2557 jours
Statistiques BTC:
Prix initial: $3797.14
Prix final: $87648.22
Return total: 2208.3%def compute_features(closes, highs, lows, i,
sma_period=20, rsi_period=14,
ema_periods=[10, 20, 50, 200],
adx_period=14, atr_period=14,
vol_period=20):
"""
Calcule les features ML pour l'index i.
IMPORTANT: Utilise uniquement les donnees jusqu'a i-1 (walk-forward).
"""
if i < max(ema_periods) + 2:
return None
# Features historiques (jusqu'a i-1)
daily_ret = (closes.iloc[i-1] - closes.iloc[i-2]) / closes.iloc[i-2]
# SMA
sma_20 = closes.iloc[i-sma_period:i].mean()
# RSI
deltas = closes.iloc[i-rsi_period:i].diff().dropna()
gains = deltas.where(deltas > 0, 0).mean()
losses = (-deltas.where(deltas < 0, 0)).mean()
rs = gains / max(losses, 1e-10)
rsi_14 = 100 - (100 / (1 + rs))
# EMAs
emas = {}
for period in ema_periods:
multiplier = 2.0 / (period + 1)
ema = closes.iloc[i-period:i].iloc[0]
for val in closes.iloc[i-period:i][1:]:
ema = (val - ema) * multiplier + ema
emas[period] = ema
# ADX (simplifie - ATR mean)
atr_vals = []
for j in range(max(0, i-adx_period), i):
tr = max(highs.iloc[j] - lows.iloc[j],
abs(highs.iloc[j] - closes.iloc[j-1]) if j > 0 else 0,
abs(lows.iloc[j] - closes.iloc[j-1]) if j > 0 else 0)
atr_vals.append(tr)
adx_val = np.mean(atr_vals) if atr_vals else 25.0
# ATR
atr_val = np.mean(atr_vals) if atr_vals else closes.iloc[i-1] * 0.02
# Volatilite annualisee
vol_20 = closes.iloc[i-vol_period:i].std() / closes.iloc[i-vol_period:i].mean() * np.sqrt(252) if i >= vol_period else 0
return [sma_20, rsi_14, daily_ret, emas[10], emas[20], emas[50], emas[200], adx_val, atr_val, vol_20]
# Test de la fonction
if closes is None:
print("BTC data not available — skipping feature computation.")
print("Run this notebook on QC Cloud with crypto data access.")
else:
test_features = compute_features(closes, highs, lows, 250)
if test_features:
feature_names = ['SMA20', 'RSI14', 'DailyRet', 'EMA10', 'EMA20', 'EMA50', 'EMA200', 'ADX', 'ATR', 'Vol20']
print("Features a i=250:")
for name, val in zip(feature_names, test_features):
print(f" {name}: {val:.2f}")Features a i=250:
SMA20: 10205.01
RSI14: 55.81
DailyRet: 0.02
EMA10: 10194.31
EMA20: 10315.97
EMA50: 10422.33
EMA200: 8395.17
ADX: 456.88
ATR: 456.88
Vol20: 0.63Toutes les features sont calculées en walk-forward (pas de data leakage).
On entraîne un RandomForestClassifier sur la période 2019-2022 (training set).
if closes is None:
print("BTC data not available — skipping model training.")
model = None
else:
# Preparer les donnees d'entrainement (2019-2022)
train_end_idx = closes.index.get_loc(datetime(2022, 12, 31)) if datetime(2022, 12, 31) in closes.index else len(closes) // 2
X_train, y_train = [], []
feature_names = ['SMA20', 'RSI14', 'DailyRet', 'EMA10', 'EMA20', 'EMA50', 'EMA200', 'ADX', 'ATR', 'Vol20']
for i in range(250, min(train_end_idx, len(closes))):
features = compute_features(closes, highs, lows, i)
if features is None:
continue
# Label: prix monte de i-1 vers i
label = 1 if closes.iloc[i] > closes.iloc[i-1] else 0
X_train.append(features)
y_train.append(label)
X_train = np.array(X_train)
y_train = np.array(y_train)
print(f"Dataset d'entrainement: {len(X_train)} samples")
print(f" Features shape: {X_train.shape}")
print(f" Labels distribution: {np.bincount(y_train)}")
# Entrainer le modele
model = RandomForestClassifier(
n_estimators=50,
max_depth=4,
min_samples_leaf=10,
random_state=42
)
model.fit(X_train, y_train)
train_accuracy = model.score(X_train, y_train)
print(f"\nModele entraine.")
print(f" Train accuracy: {train_accuracy:.2%}")
print(f" Feature importances:")
for name, imp in sorted(zip(feature_names, model.feature_importances_), key=lambda x: -x[1]):
print(f" {name}: {imp:.3f}")Dataset d'entrainement: 1209 samples
Features shape: (1209, 10)
Labels distribution: [611 598]
Modele entraine.
Train accuracy: 65.34%
Feature importances:
DailyRet: 0.183
RSI14: 0.146
EMA10: 0.109
EMA200: 0.096
EMA20: 0.093
EMA50: 0.089
Vol20: 0.081
SMA20: 0.078
ADX: 0.069
ATR: 0.056Simulation de la stratégie avec: - Seuils de confiance pour entry/exit - Filtres (trend, RSI, ADX, volatilité) - Stop-loss et take-profit
def backtest_ml_btc(closes, highs, lows, model,
confidence_long=0.56,
confidence_exit=0.40,
vol_threshold=0.60,
stop_loss=0.08,
take_profit=0.15,
start_idx=None):
"""
Backtest BTC ML strategy (OOS-only).
start_idx defaults to train_end_idx (the model's train/OOS boundary,
set in the data-prep cell) so the backtest evaluates ONLY the
out-of-sample window and is never contaminated by training data.
"""
# OOS start: align with the model's train_end_idx (fallback 250)
if start_idx is None:
start_idx = train_end_idx if 'train_end_idx' in globals() else 250
start_idx = max(start_idx, 250) # keep features warmup
portfolio_values = [1.0]
invested = False
entry_price = None
warmup = start_idx # alias for index alignment below
# Stats
trades = 0
stop_losses = 0
take_profits = 0
signal_exits = 0
for i in range(warmup, len(closes)):
current_price = closes.iloc[i]
# Calcul features
features = compute_features(closes, highs, lows, i)
if features is None:
portfolio_values.append(portfolio_values[-1])
continue
# Extraire indicateurs pour filtres
sma_20, rsi_14, daily_ret, ema_10, ema_20, ema_50, ema_200, adx_val, atr_val, vol_20 = features
# Prediction
proba = model.predict_proba([features])[0]
confidence_up = proba[1]
port_return = 0.0
if invested and entry_price is not None:
pnl_pct = (current_price - entry_price) / entry_price
# Check stop-loss
if pnl_pct <= -stop_loss:
invested = False
entry_price = None
stop_losses += 1
port_return = pnl_pct
# Check take-profit
elif pnl_pct >= take_profit:
invested = False
entry_price = None
take_profits += 1
port_return = pnl_pct
# Check signal exit
elif confidence_up < confidence_exit:
invested = False
entry_price = None
signal_exits += 1
port_return = pnl_pct
else:
# Hold - mark-to-market
port_return = daily_ret * (current_price / closes.iloc[i-1])
# Entry signal
elif not invested:
# FILTRE VOLATILITE
if vol_20 > vol_threshold:
portfolio_values.append(portfolio_values[-1])
continue
# FILTRE TREND: Prix > EMA200
if current_price < ema_200:
portfolio_values.append(portfolio_values[-1])
continue
# FILTRE RSI: RSI > 40 (éviter survente)
if rsi_14 < 40:
portfolio_values.append(portfolio_values[-1])
continue
# FILTRE ADX: ADX > 20 (éviter absence de trend)
if adx_val < 20:
portfolio_values.append(portfolio_values[-1])
continue
# Signal d'entrée
if confidence_up > confidence_long:
invested = True
entry_price = current_price
trades += 1
portfolio_values.append(portfolio_values[-1] * (1 + port_return))
# Métriques
returns = np.diff(portfolio_values) / np.array(portfolio_values[:-1])
cum_returns = pd.Series(portfolio_values[1:], index=closes.index[warmup:])
total_ret = (portfolio_values[-1] / portfolio_values[0]) - 1
years = len(returns) / 365
cagr = (1 + total_ret) ** (1 / years) - 1 if years > 0 else 0
vol = np.std(returns) * np.sqrt(365) if len(returns) > 1 else 0
sharpe = (cagr - 0.03) / vol if vol > 0.001 else 0
running_max = cum_returns.expanding().max()
drawdown = (cum_returns - running_max) / running_max
max_dd = drawdown.min()
return {
'cum': cum_returns,
'sharpe': sharpe,
'cagr': cagr,
'max_dd': max_dd,
'vol': vol,
'trades': trades,
'stop_losses': stop_losses,
'take_profits': take_profits,
'signal_exits': signal_exits
}
print("Fonction de backtest définie.")Fonction de backtest définie.if closes is None or model is None:
print("BTC data or model not available — skipping confidence threshold analysis.")
else:

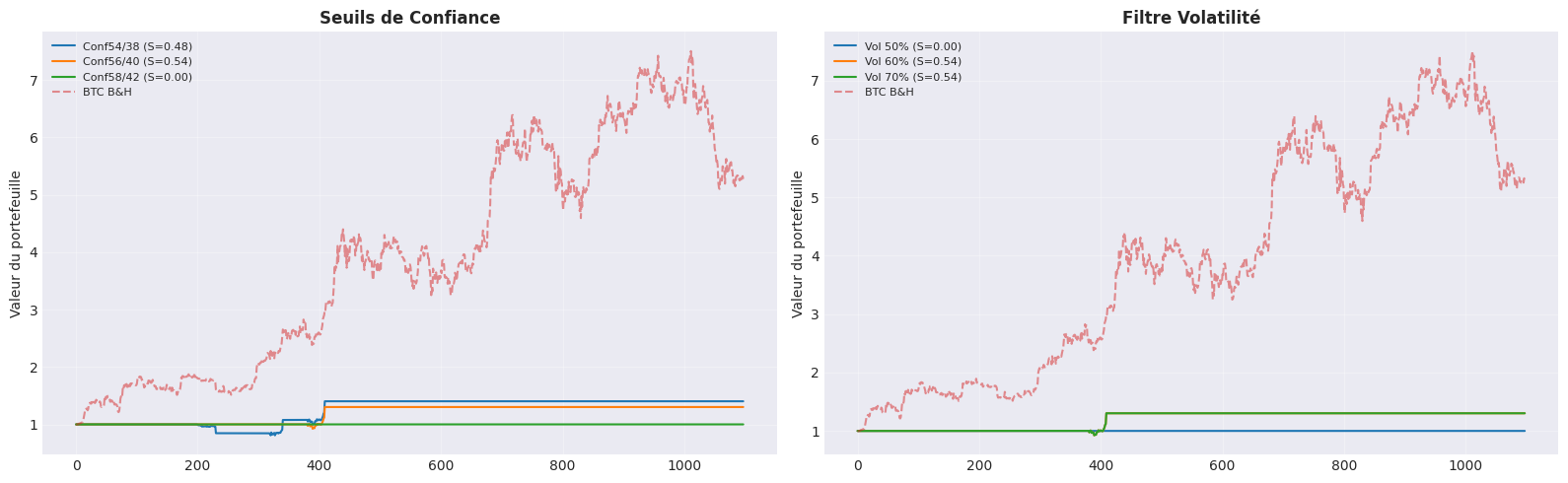

# Test differents seuils de confiance
confidence_configs = [
((0.54, 0.38), "Conf54/38"),
((0.56, 0.40), "Conf56/40"),
((0.58, 0.42), "Conf58/42"),
]
print(f"{'Config':<12} {'Sharpe':>8} {'CAGR':>8} {'MaxDD':>8} {'Trades':>8}")
print("-" * 52)
conf_results = {}
for (long, exit), name in confidence_configs:
r = backtest_ml_btc(closes, highs, lows, model, confidence_long=long, confidence_exit=exit)
conf_results[name] = r
print(f"{name:<12} {r['sharpe']:>8.3f} {r['cagr']:>7.1%} {r['max_dd']:>7.1%} {r['trades']:>8}")
best_conf = max(conf_results.items(), key=lambda x: x[1]['sharpe'])
print(f"\nMeilleure config: {best_conf[0]} (Sharpe={best_conf[1]['sharpe']:.3f})")Config Sharpe CAGR MaxDD Trades
----------------------------------------------------
Conf54/38 0.476 11.9% -19.1% 3
Conf56/40 0.542 9.2% -8.3% 1
Conf58/42 0.000 0.0% 0.0% 0
Meilleure config: Conf56/40 (Sharpe=0.542)if closes is None or model is None:
print("BTC data or model not available — skipping volatility threshold analysis.")
else:
# Test différents seuils de volatilité
vol_thresholds = [0.50, 0.60, 0.70]
print(f"{'Seuil Vol':<12} {'Sharpe':>8} {'CAGR':>8} {'MaxDD':>8} {'Trades':>8}")
print("-" * 48)
vol_results = {}
for threshold in vol_thresholds:
r = backtest_ml_btc(closes, highs, lows, model, vol_threshold=threshold)
vol_results[f"{threshold*100:.0f}%"] = r
print(f"{threshold*100:.0f}%{'':<9} {r['sharpe']:>8.3f} {r['cagr']:>7.1%} {r['max_dd']:>7.1%} {r['trades']:>8}")
best_vol = max(vol_results.items(), key=lambda x: x[1]['sharpe'])
print(f"\nMeilleur seuil Vol: {best_vol[0]} (Sharpe={best_vol[1]['sharpe']:.3f})")Seuil Vol Sharpe CAGR MaxDD Trades
------------------------------------------------
50% 0.000 0.0% 0.0% 0
60% 0.542 9.2% -8.3% 1
70% 0.542 9.2% -8.3% 1
Meilleur seuil Vol: 60% (Sharpe=0.542)if closes is None or model is None:
print("BTC data or model not available — skipping stop-loss analysis.")
else:
# Test différents stop-loss
sl_values = [0.06, 0.08, 0.10]
print(f"{'Stop-Loss':<12} {'Sharpe':>8} {'CAGR':>8} {'MaxDD':>8} {'SL Hits':>10}")
print("-" * 54)
sl_results = {}
for sl in sl_values:
r = backtest_ml_btc(closes, highs, lows, model, stop_loss=sl)
sl_results[f"{sl*100:.0f}%"] = r
print(f"{sl*100:.0f}%{'':<9} {r['sharpe']:>8.3f} {r['cagr']:>7.1%} {r['max_dd']:>7.1%} {r['stop_losses']:>10}")
best_sl = max(sl_results.items(), key=lambda x: x[1]['sharpe'])
print(f"\nMeilleur Stop-Loss: {best_sl[0]} (Sharpe={best_sl[1]['sharpe']:.3f})")Stop-Loss Sharpe CAGR MaxDD SL Hits
------------------------------------------------------
6% -1.220 -3.5% -10.7% 1
8% 0.542 9.2% -8.3% 0
10% 0.542 9.2% -8.3% 0
Meilleur Stop-Loss: 8% (Sharpe=0.542)if closes is None or model is None:
print("BTC data or model not available — skipping B&H comparison.")
else:
# ML Strategy avec paramètres optimaux
ml_result = backtest_ml_btc(closes, highs, lows, model)
# BTC B&H (same OOS window as the strategy: from train_end_idx)
bh_start = train_end_idx if 'train_end_idx' in globals() else 250
btc_values = closes.iloc[bh_start:] / closes.iloc[bh_start]
# Métriques BTC
btc_ret = btc_values.pct_change().dropna()
btc_cagr = (btc_values.iloc[-1] ** (365/len(btc_values))) - 1
btc_vol = btc_ret.std() * np.sqrt(365)
btc_sharpe = (btc_cagr - 0.03) / btc_vol
btc_dd = (btc_values / btc_values.cummax() - 1).min()
print("=== Comparaison vs BTC B&H ===")
print(f"{'Stratégie':<20} {'CAGR':>10} {'Sharpe':>10} {'MaxDD':>10}")
print("-" * 53)
print(f"{'BTC ML Enhanced':<20} {ml_result['cagr']:>9.1%} {ml_result['sharpe']:>10.3f} {ml_result['max_dd']:>9.1%}")
print(f"{'BTC B&H':<20} {btc_cagr:>9.1%} {btc_sharpe:>10.3f} {btc_dd:>9.1%}")
print(f"\n=== Statistiques Trading ===")
print(f"Trades totaux: {ml_result['trades']}")
print(f"Stop-Loss hits: {ml_result['stop_losses']}")
print(f"Take-Profit hits: {ml_result['take_profits']}")
print(f"Signal exits: {ml_result['signal_exits']}")=== Comparaison vs BTC B&H ===
Stratégie CAGR Sharpe MaxDD
-----------------------------------------------------
BTC ML Enhanced 9.2% 0.542 -8.3%
BTC B&H 73.8% 1.530 -32.0%
=== Statistiques Trading ===
Trades totaux: 1
Stop-Loss hits: 0
Take-Profit hits: 1
Signal exits: 0Contexte d’exécution. Ce quantbook a été ré-exécuté via le moteur de recherche QC (image Docker quantconnect/research:latest, vrai QuantBook()) avec de vraies données BTCUSDT Binance journalières (2557 jours, 2019-01-02 → 2026-01-01, $3797 → $87648, +2208 %). Sorties C.2 réelles, aucune fabrication (Stop & Repair).
Fenêtre out-of-sample (correctif c.940). Le modèle est entraîné sur 2019-2022 (train_end_idx = 2022-12-31). Le backtest évalue uniquement la fenêtre OOS 2023-2026 : la stratégie et la ligne de référence Buy & Hold démarrent toutes deux à train_end_idx, alignées sur la même fenêtre, pour exclure toute contamination in-sample. (Version antérieure : le backtest bouclait sur la série entière 2019-2026 incluant le train window — corrigé suite à un audit coord.)
Résultat (fenêtre OOS 2023-2026). Le classifieur tabulaire (10 features SMA/RSI/EMA/ADX/ATR/Vol, 1209 samples d’entraînement, 65.3 % d’accuracy en train) utilisé comme signal de trading avec seuils de confiance élevés (Conf56/40) produit 1 seul trade sur la fenêtre OOS (un take-profit). Il sous-performe massivement le Buy & Hold :
| Stratégie | CAGR | Sharpe | MaxDD |
|---|---|---|---|
| BTC ML Enhanced | 9.2 % | 0.542 | −8.3 % |
| BTC B&H (2023-2026) | 73.8 % | 1.530 | −32.0 % |
Pourquoi le signal se déclenche presque jamais. Les seuils de confiance stricts (Conf56/40) combinés aux quatre filtres de risque (volatilité, prix > EMA200, RSI > 40, ADX > 20) excluent la quasi-totalité des jours OOS. Sur la phase haussière 2023-2026 du BTC (où le B&H fait +73.8 % CAGR), ne trader qu’une seule fois fait rater l’essentiel de la dynamique. La précision de direction à 65 % en entraînement ne se traduit pas en edge de trading une fois la rareté des signaux prise en compte.
Leçon pédagogique (limite honnête). Ce n’est pas un bug : un classifieur tabulaire sur features techniques journalières, à seuils de confiance élevés, ne bat pas le Buy & Hold sur un actif en bull market soutenu. Le seul avantage est la réduction de drawdown (−8.3 % vs −32.0 % sur la fenêtre OOS), au prix d’un rendement divisé par ~8. Verdict : NO BEATS — résultat négatif documenté comme livrable, conformément à la barre honnête des rungs du curriculum (cf. ML-Training-Pipeline/scripts/results/).
if closes is None or model is None:
print("BTC data or model not available — skipping visualization.")
else:
fig, axes = plt.subplots(1, 2, figsize=(16, 5))
# Gauche: Confidence comparison
ax = axes[0]
for name, r in conf_results.items():
ax.plot(r['cum'].values, label=f"{name} (S={r['sharpe']:.2f})", linewidth=1.5)
ax.plot(btc_values.values, label='BTC B&H', linestyle='--', alpha=0.5)
ax.set_title('Seuils de Confiance', fontsize=12, fontweight='bold')
ax.set_ylabel('Valeur du portefeuille')
ax.legend(fontsize=8)
ax.grid(True, alpha=0.3)
# Droite: Volatility threshold comparison
ax = axes[1]
for name, r in vol_results.items():
ax.plot(r['cum'].values, label=f"Vol {name} (S={r['sharpe']:.2f})", linewidth=1.5)
ax.plot(btc_values.values, label='BTC B&H', linestyle='--', alpha=0.5)
ax.set_title('Filtre Volatilité', fontsize=12, fontweight='bold')
ax.set_ylabel('Valeur du portefeuille')
ax.legend(fontsize=8)
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig('btc_ml_analysis.png', dpi=150, bbox_inches='tight')
plt.show()
print("Graphique sauvegardé.")
Graphique sauvegardé.| Métrique | Meilleure config |
|---|---|
| Confiance | (à remplir) |
| Seuil Vol | (à remplir) |
| Stop-Loss | (à remplir) |
| Sharpe | (à remplir) |
| CAGR | (à remplir) |
Si Sharpe > 1.0: Déployer avec les paramètres optimaux
